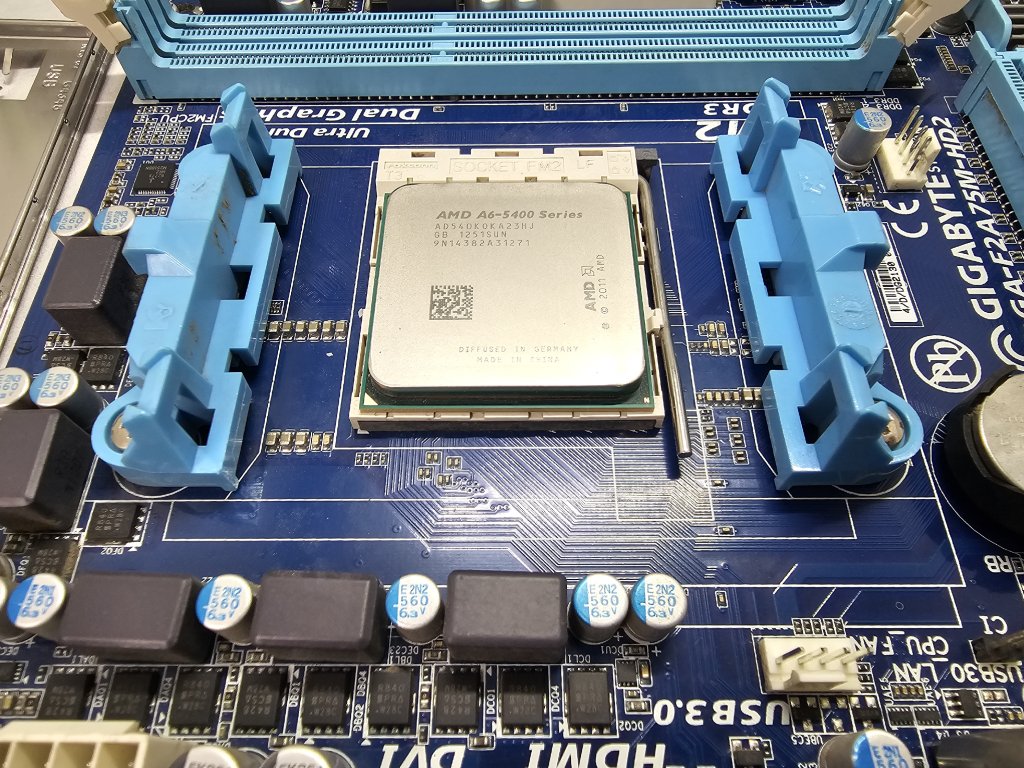

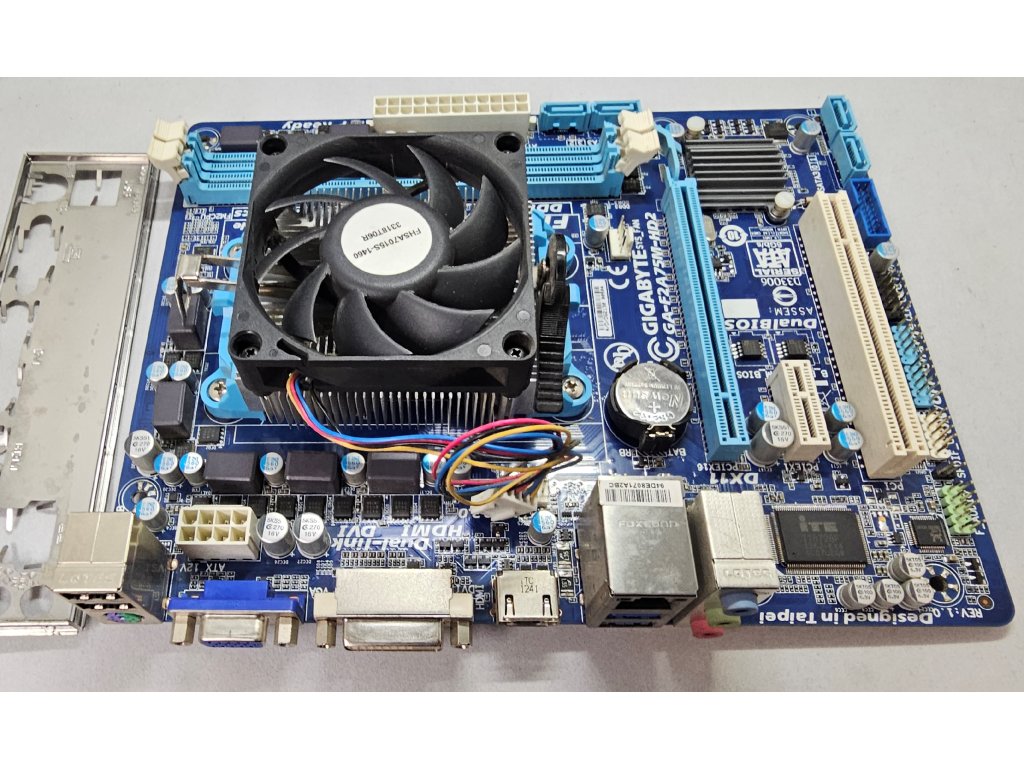

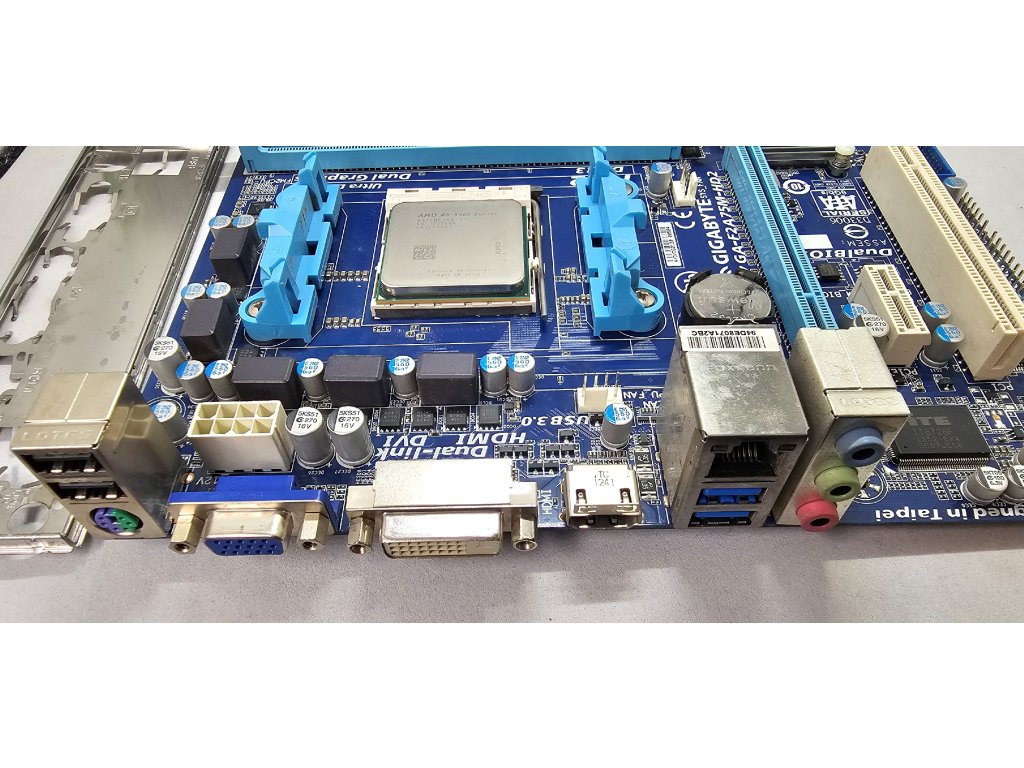

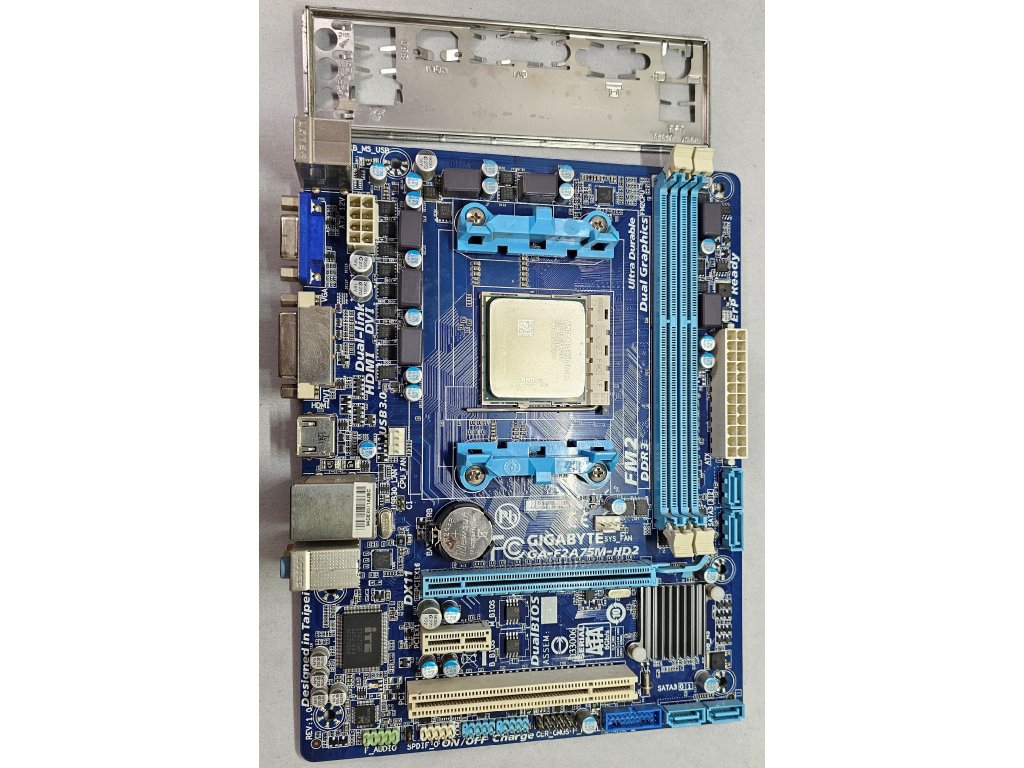

Základní deska GIGABYTE GA-F2A75M-HD2 rev.1.0 + A6-5400K+ Chladič
| Kategorie | Specifikace |
|---|---|
| APU | FM2 Socket: AMD A series processors, AMD Athlon™ series processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD A75 |
| Paměť | 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (Dual channel memory architecture, Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules, Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules) |
| Onboard Graphics | APU with integrated AMD Radeon™ HD 8000/7000 series graphics: 1 x D-Sub port, 1 x DVI-D port (max resolution 2560x1600), 1 x HDMI port (max resolution 1920x1200) |
| Audio | Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot, 1 x PCI slot |
| Multi-Graphics Technology | Support for AMD Dual Graphics technology (Only A series APUs support AMD Dual Graphics) |
| Storage Interface | 4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices, Support for RAID 0, RAID 1, RAID 10, and JBOD |
| USB | Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header), Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x APU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.0/2.0 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x Clear CMOS jumper, 1 x chassis intrusion header |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In/Line Out/Microphone) |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | System voltage detection, APU/System temperature detection, APU/System fan speed detection, APU overheating warning, APU/System fan fail warning, APU/System fan speed control |
| BIOS | 2 x 32 Mbit flash, Use of licensed AMI EFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for @BIOS, Support for Q-Flash, Support for Xpress Install, Support for EasyTune, Support for Smart Recovery 2, Support for Auto Green, Support for ON/OFF Charge, Support for 3TB+ Unlock, Support for Q-Share |
| Bundled Software | Norton Internet Security (OEM version) |
| Operating System | Support for Windows 8/7/Vista/XP (Windows Vista/XP supported only with AMD FM2 Trinity APU) |
| Form Factor | Micro ATX Form Factor; 22.5cm x 17.4cm |
Doplňkové parametry
| Kategorie: | FM2 / FM2+ |
|---|---|
| Záruka: | 6 měs. Použité zboží |
